Artemis | Disc and Post Clamp System

Artemis is a Woods Glass Balustrade range designed to be installed anywhere from residential areas to commercial areas.

Artemis Disc uses a disc clamping system and Artemis Post uses a post clamping system. Both Disc and Post are C3/D rated, meaning they can be used in commercial areas not susceptible to heavy crowding.

Artemis uses laminated safety glass according to NZS 4223.3:2016. The Artemis system uses aesthetic framing allowing for a mixture of strength and design. It can be used in conjunction with a variety of Woods Glass products such as Obscura, Keramo and UltraVis to create the desired aesthetic. Artemis is even available in conjunction with our curved glass balustrade system to create a clean and dramatic balustrade system.

All Woods Balustrade systems are extensively tested and standard drawings are available upon request.

PERFORMANCE/SPECIFYING

Artemis is a C5/C3/D rated system, meaning it can be used in commercial areas that are susceptible to overcrowding if the HD version is used. Artemis systems must be engineered to specific code and design, please contact Woods Glass to find out more information.

CLEANING/MAINTENANCE

Normally when cleaning glass, a vinegar-based glass cleaner or mild dish soap and water with a soft, lint-free cloth or paper products is recommended. A squeegee or soft cloth may be carefully used to dry the glass and help avoid water spots.

It is not recommended to use petroleum-based cleaners or solvents as they can streak the glass and weaken the seal between the glass and frame. Avoid washing in direct sunlight to reduce streaking on the glass.

Never use razor blades, steel wool, putty knives or abrasive pads as they may damage the glass, particularly on toughened glass.

RANGE

Artemis has 3 different varieties of clamping systems: Heavy Duty, Disc and Post. Artemis can be combined with a range of Woods Glass products such as ceramic fritted glass (Keramo) and ultra clear glass (UltraVis) for improved performance and aesthetics. Please contact Woods Glass to discuss special requirements.

SPECIFICATION

We recommend using Masterspec 4855WG Woods Glass Balustrade Systems when specifying this system.

DOWNLOAD DATASHEET


OTHER PRODUCTS


Relevant projects

QT Hotel

QT Hotel

View >

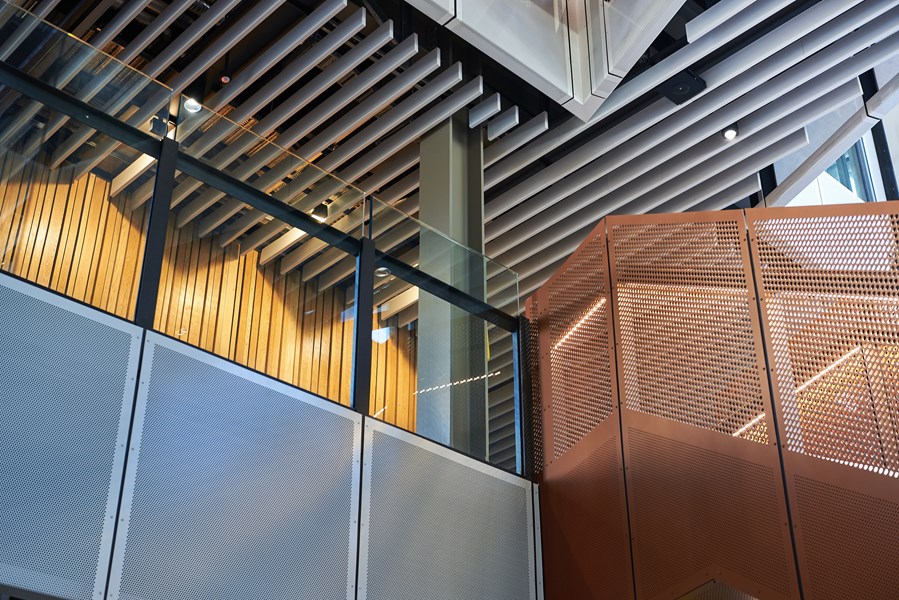

UOA B507
