SkyLign™ Edge | Glass Canopies

SkyLign Edge is a Woods Glass designed glazing system that provides a high performance glazing solution for canopies.

This design style of overhead glazing generally employs spider fittings or engineered fittings that fix back to a primary structure. The engineered fittings require a drilled hole in specific engineered laminated toughened glass that suspends the glass locally at each fixing point.

The glass panes are generally clear silicone butt jointed to provide the appearance of a monolithic sheet of glass. Due to potential exposure to high wind, seismic, snow and live loads etc, it is necessary for these types of systems to be specifically designed.

SkyLign Edge can be used in conjunction with a range of high performance safety glass with and without ceramic printed glass (Keramo) to improve the performance characteristics of the canopies.

PERFORMANCE/SPECIFYING

Glass size and primary structure support is the only limitation. Woods Glass can source your specific glass requirements to meet your project needs.

Woods Glass specifically engineers the best suite option for your project taking into consideration span, structural system, load imposed by glass thickness, wind & snow loading. The spanning ability will vary depending on the above.

CLEANING/MAINTENANCE

Normally when cleaning glass, a vinegar-based glass cleaner or mild dish soap and water with a soft, lint-free cloth or paper products is recommended. A squeegee or soft cloth may be carefully used to dry the glass and help avoid water spots.

It is not recommended to use petroleum-based cleaners or solvents as they can streak the glass and weaken the seal between the glass and frame. Avoid washing in direct sunlight to reduce streaking on the glass.

Never use razor blades, steel wool, putty knives or abrasive pads as they may damage the glass, particularly on toughened glass.

RANGE

SkyLign Edge is manufactured in a large variety of sizes and thicknesses. SkyLign Edge can incorporate a variety of Woods Glass products such as Keramo to meet specific performance and aesthetic requirements. Please contact Woods Glass to discuss special requirements.

SPECIFICATION

We recommend using Masterspec 4611WG Woods Glass Exterior Glazing when specifying this system.

DOWNLOAD DATASHEET


OTHER PRODUCTS


Relevant projects

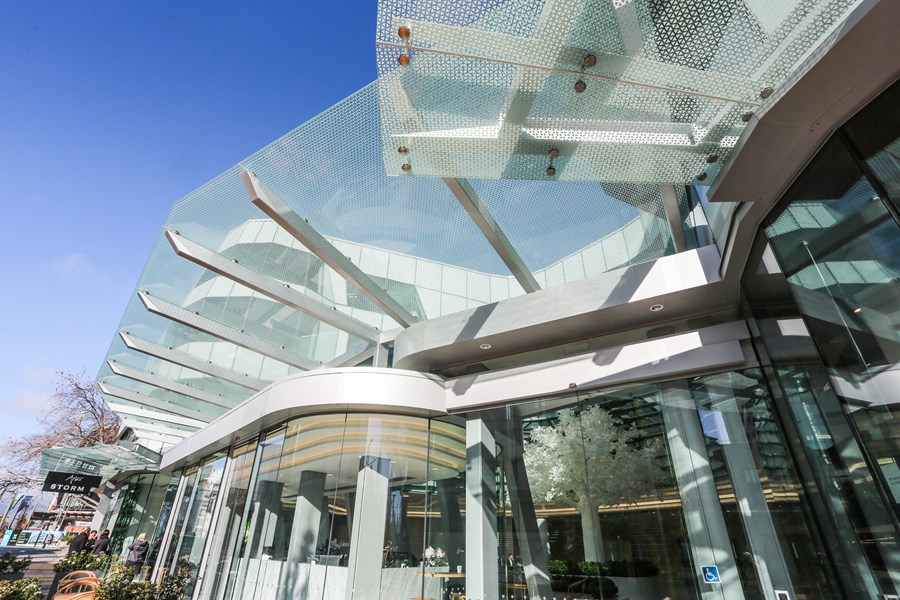

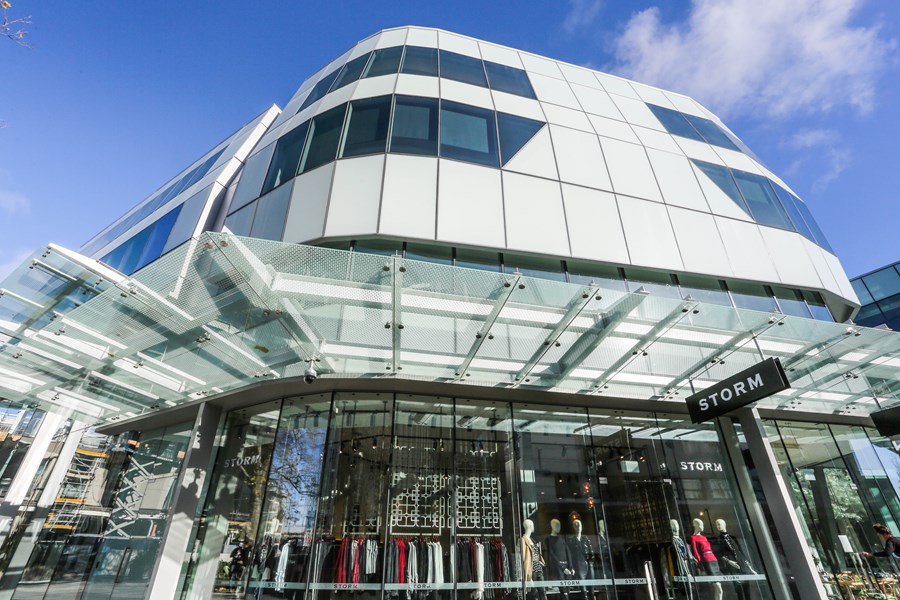

ANZ Triangle

ANZ Triangle

View >
One Queen Street

One Queen Street

View >

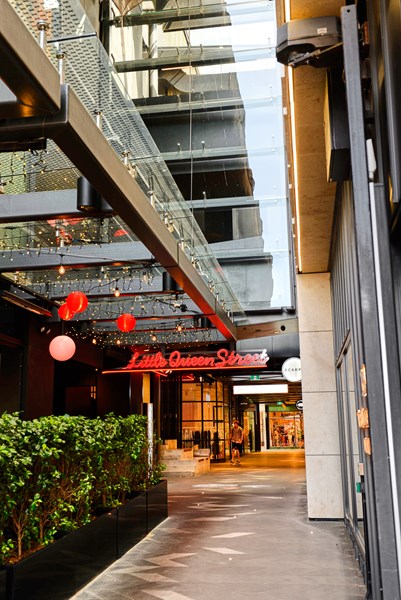

Commercial Bay - Podium
