SkyLign Alpha | Sky Lights

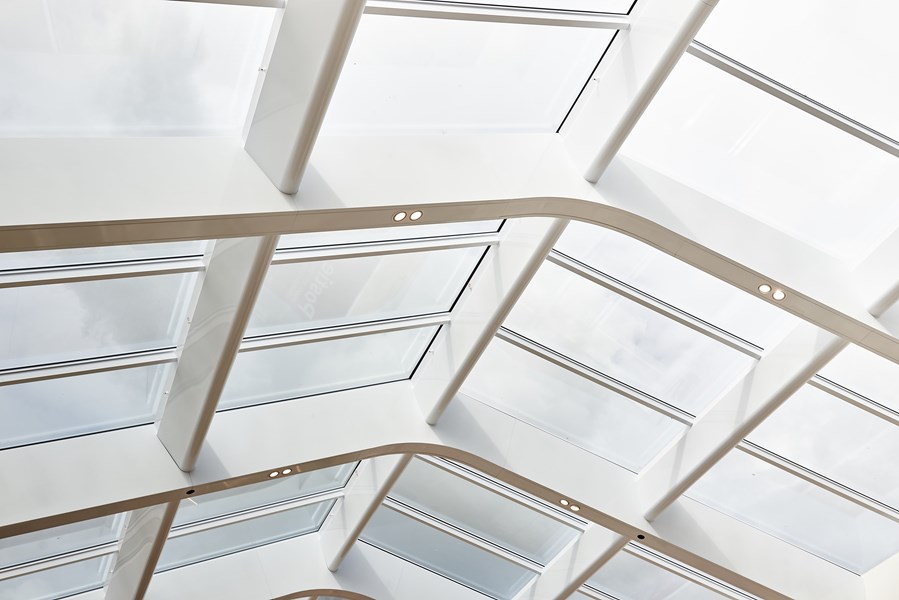

SkyLign Alpha is a Woods Glass designed glazing system that provide a sophisticated glazing solution for skylights.

Many architectural buildings require light into central spaces via rooflights and skylights - these spaces also require insulation. However, this can cause over-heating and glare issues if the correct glazing system isn’t utilised.

SkyLign Alpha incorporates a range of high performance glass options (Keramo, ThermalPlus, Infinit E) along with Thermosash’s Alpha Glazing System.These panes must also support high wind loads and live loads for maintenance, so the glass design is critical – Engineered performance glass rooflights are a must.

Woods Glass specialise in the design and glazing of engineered rooflights on commercial buildings.

PERFORMANCE/SPECIFYING

Woods Glass have the largest spanning rooflight systems in the market due to each system being engineered and customised. All glass must be engineered to specific code and design, please contact Woods Glass to find out more information.

CLEANING/MAINTENANCE

Normally when cleaning glass, a vinegar-based glass cleaner or mild dish soap and water with a soft, lint-free cloth or paper products is recommended. A squeegee or soft cloth may be carefully used to dry the glass and help avoid water spots.

It is not recommended to use petroleum-based cleaners or solvents as they can streak the glass and weaken the seal between the glass and frame. Avoid washing in direct sunlight to reduce streaking on the glass.

Never use razor blades, steel wool, putty knives or abrasive pads as they may damage the glass, particularly on toughened glass.

RANGE

SkyLign is manufactured in a large variety of sizes and thicknesses. The span, structural system and load imposed by the glass thickness will determine the spanning ability of the skylight. Skylign can incorporate a variety of Woods Glass products such as Keramo, Infinit E and ThermalPlus to meet specific performance requirements. Please contact Woods Glass to discuss special requirements.

SPECIFICATION

We recommend using Masterspec 4611WG Woods Glass Exterior Glazing when specifying this system.

DOWNLOAD DATASHEET


OTHER PRODUCTS


Relevant projects

QT Hotel

QT Hotel

View >
ANZ Triangle

ANZ Triangle

View >
Parnell's Holy Trinity Cathedral

Parnell's Holy Trinity Cathedral

View >
One Queen Street

One Queen Street

View >

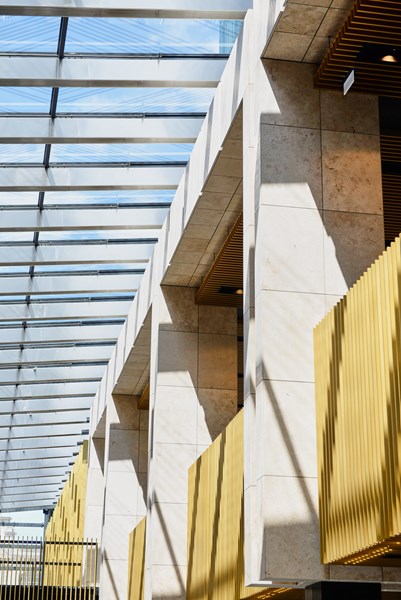

Commercial Bay - Podium
